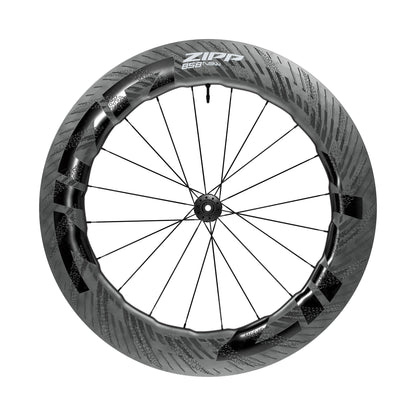

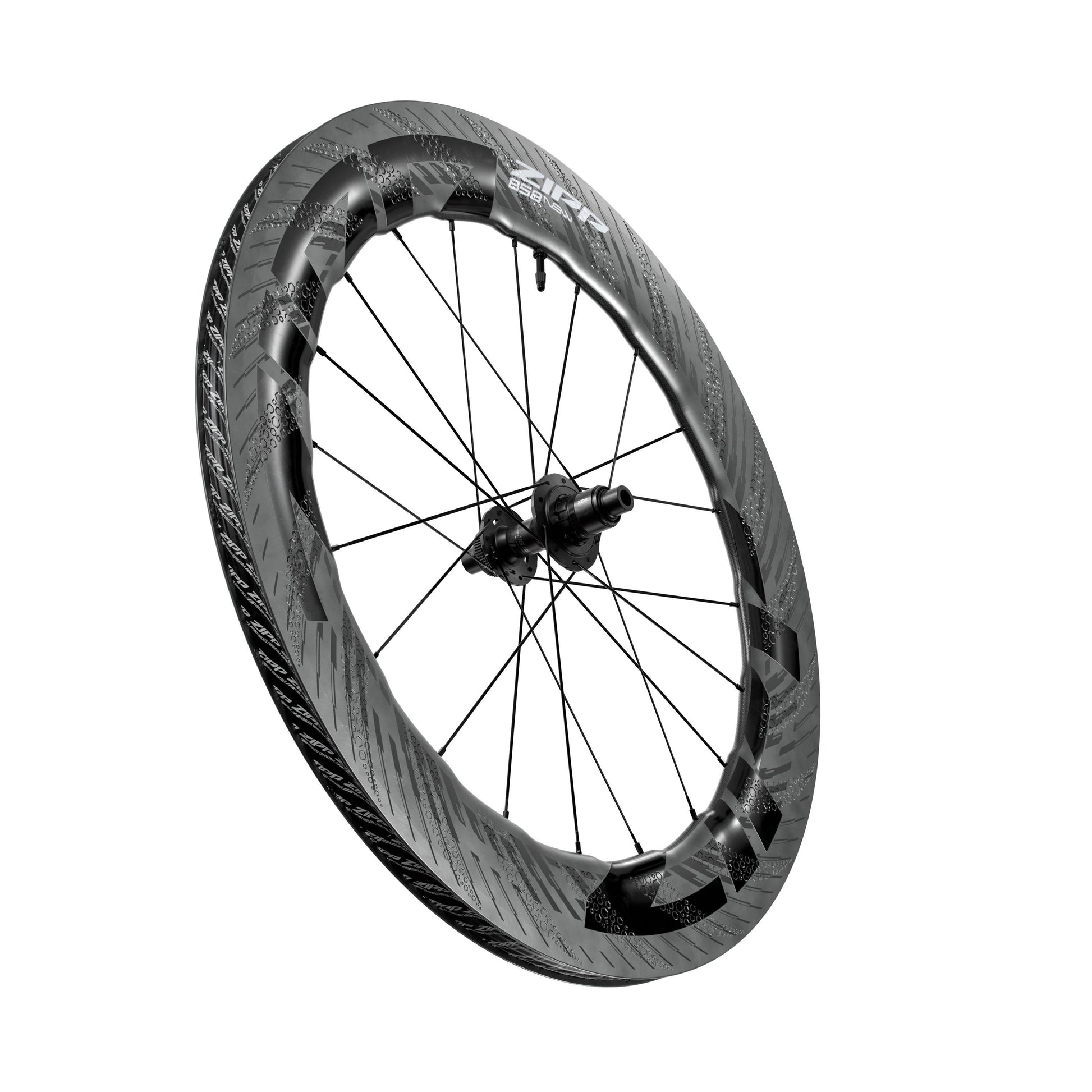

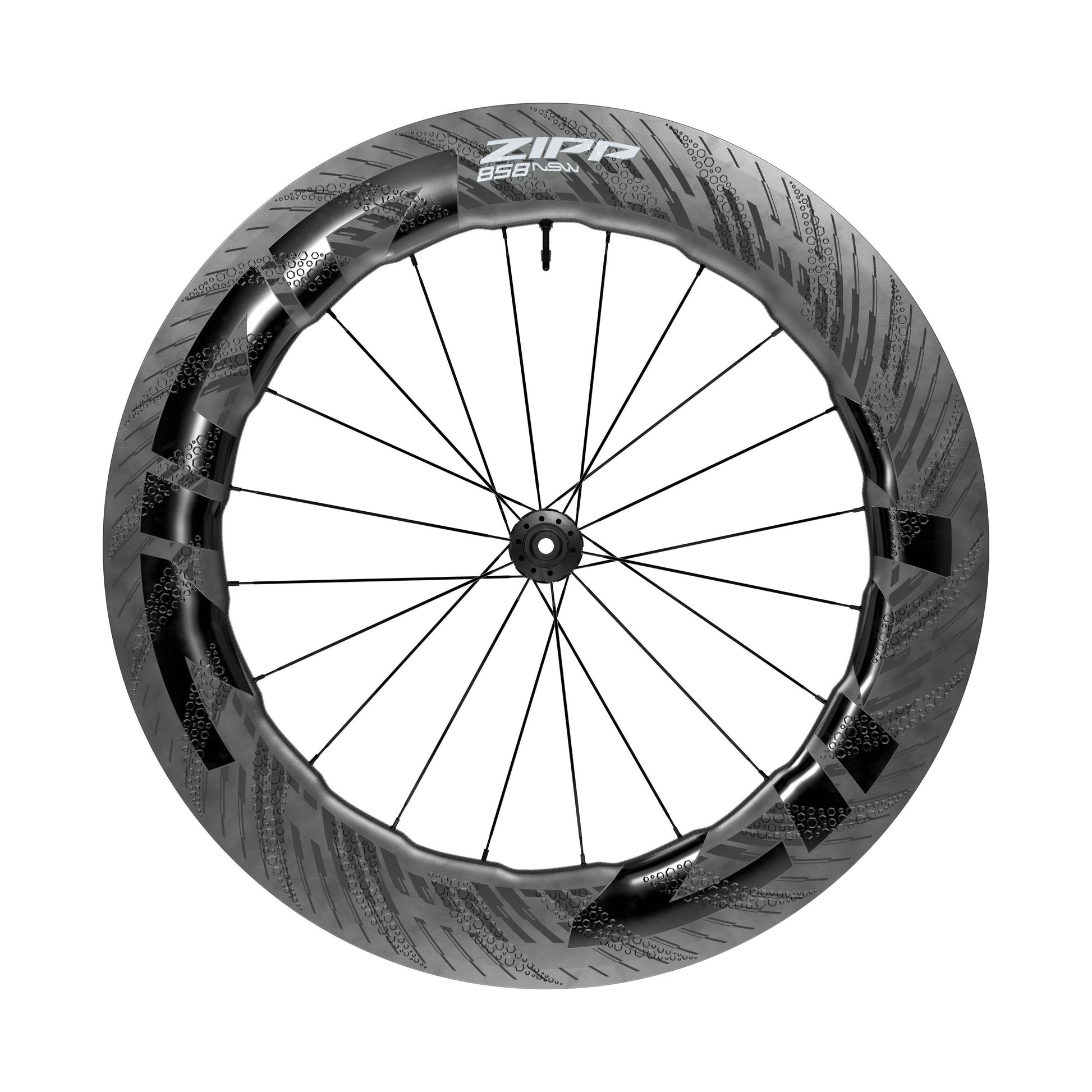

With the 858 NSW, ZIPP presents its ultimate aero wheelset for road bike, triathlon and time trial.
Thanks to ZIPP's "Total System Efficiency" concept (TSE), the advanced carbon wheels are even faster than ever before. They combine the positive characteristics of high rims with a low weight, which is normally only achieved with 20 mm lower profiles.
The inner rim width of 23 mm is ideal for running wider tires with lower pressure. This not only reduces rolling resistance, riders also benefit from a smoother ride and less fatigue. This is particularly advantageous for the subsequent running section in a triathlon. Meanwhile, the wave-shaped HyperFoil profile with its differentiated SawTooth rim depth of 82/85 mm and the HexFin ABLC dimple structure ensures maximum aerodynamic efficiency and crosswind stability. The result is pure speed.
With its optimized rim bed, which noticeably simplifies tire mounting, the 858 NSW wheelset furtherly scores with a very practical feature. The wheels are rounded off by the ZR1 SL premium hubs, which are 30 grams lighter than the previous version and have ceramic hybrid bearings, which also benefit the rolling behaviour. In addition, their focus on disc brakes guarantees more reliable speed control and braking power in all weather conditions.
Features
- Zipp’s most advanced and fastest deep-rim wheel for road, triathlon, and time trialing
- Weighs 30 g lighter than previous model
- Optimized for 30mm tires
- Minimum 28mm tire width
- TSE for greater efficiency and reduced rolling resistance
- Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for top aero and crosswind-stability performance with an undulating rim depth
- ZR1 SL hubset with ceramic bearings
- Zipp graphics applied using Zipp’s ImPress direct-print technology
Specification
-
Range of application: Road bike / Triathlon
-
Model: 858 NSW
-
Rim diameter: 28"
-
ETRTO: 622 mm
-
Rim profile: Symmetrical
-
Tire interface: Hookless TSS
-
Rim type: Clincher (folding/wire tires)
-
Tubeless Ready: Yes
-
Hub type: ZR1 SL
-
Freehub system: 6 pawls, compression springs
-
Rim height: 82/85 mm
-
Outer width: 27 mm
-
Rim width: 23 mm
-
Axle system: 12 mm Thru Axle
-
Built-in dimension: 142 mm
-
Number of holes: 20
-
Spoke pattern: Two-cross (1:1)
-
Valve hole: Presta / SV Ø 6.5 mm
-
Brake interface: Disc Center Lock
-
Spokes: CX-Ray
-
Spoke length drive side: 230 mm
-
Spoke length non-drive side: 232 mm
-
Nipples: Sapim Secure-Loc
-
Maximum tyre pressure: 5.0 Bar (73 psi)
-
Recommended system weight: 114 kg (body weight + bike + equipment)
Freehub body
- Shimano HG 10/11-Speed
- SRAM XDR
Material
-
Rim: Carbon
-
Hub shell: Aluminium
-
Spokes: Aluminium
-
Nipples: Aluminium
-
Freehub body: Aluminium
Contents
- 1 x Zipp 858 NSW Carbon rear wheel
- incl. 12 mm end cap
Thru axle not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
