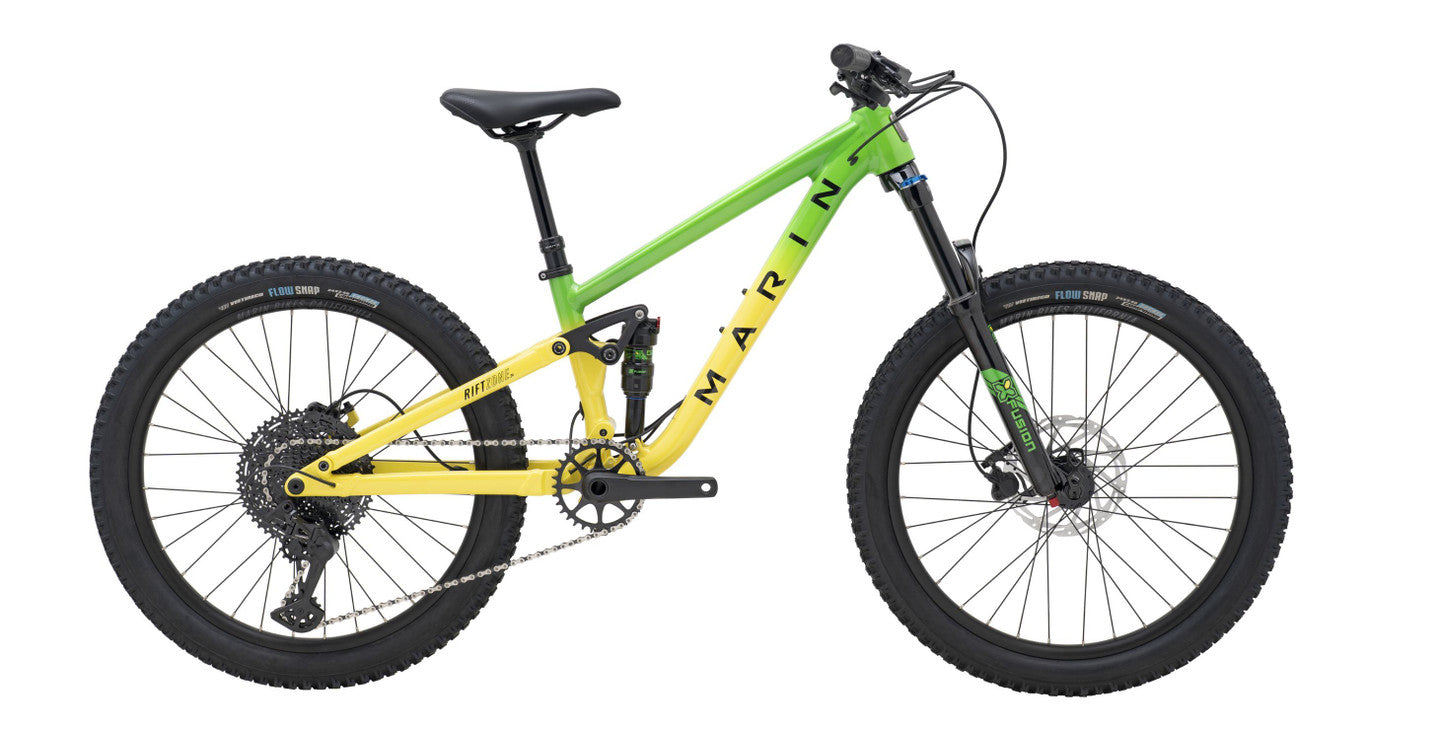

MARIN RIFT ZONE 26 KID'S FS MTB BIKE 2026 TEKTRO GREEN/YELLOW FADE
Product Details - Marin Rift Zone 26 Kid's Fs Mtb Bike 2026 Tektro Green/yellow Fade
Product Details - Marin Rift Zone 26 Kid's Fs Mtb Bike 2026 Tektro Green/yellow Fade
REAL SINGLETRACK RIDING
KEEPING UP WITH THE PARENTS
FUN!
Because young rippers need that Rifty Love too! Our take on the ultimate do-it-all trail bike, bringing big-bike performance for younger riders.
The Marin Rift Zone 26 is made to party, just like the full-sized rifty. It has 26" wheels that are a little smaller than full-sized bikes, making it the perfect gateway ride for tweeny riders. And just like the 'grown up' rift zone, it has 130mm rear travel, a lightweight aluminum frame and our super-plush multitrac suspension platform for endless good times on the trails
Key Features
- 26" Wheels, down sizeable to 24": Got another little shredder on the way? The Rift Zone 26 shares the same frame, fork and shock as the Rift Zone 24. Simply swap the wheels and cranks to downsize it to 24" as the perfect hand-me-down.
- X-Fusion Suspension: Easily adjustable air suspension is tunable for a growing kid.
-
Powerful Disc brakes: For minimal maintenance and all-conditions stopping power.
Full Specification
- Frame: New Series 3 6061 Aluminium, 26” Wheels (fits 24"), 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
- Rear Shock: X-Fusion O2 Pro R, 190x45mm, Custom Tune, M8x25mm Hardware
- Fork: X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
- Shifters: Tektro, SL M5100-11R, 11-Speed
- Crankset: Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type
- Cassette: Tektro CS-M5100-11, 11-Speed, 11-50T
- Chain: KMC X-11 Silver and Black
- Front Derailleur: N/A
- Rear Derailleur: Tektro RD-5100-L, Long Cage, Clutch
- Bottom Bracket: External Sealed Cartridge Bearings
- Pedals:
- Rims: Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific
- Front Hub: Joytech D041-B15, 110x15mm, 6-Bol
- Rear Hub: Joytech D142TSE-B5, 141QR, 6-Bolt
- Tyres: Vee Tire Co, Flow Snap 26”x2.4", Tackee Compound, Wire Bead
- Brakes: Tektro HD-M280 Hydraulic, 180mm Rotor
- Handlebar Grips: Marin Dual Density
- Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminium, 15mm Rise, 720mm Width, 4º Up, 9º Back
- Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- Stem: Marin 3D Forged Alloy, 35mm
- Saddle: Marin Speed Concept
- Seatpost: Marin Alloy, 30.9
- Accessories:
-
Weight: N/A
Size Guide for Marin Rift Zone JR 26
Wheel Size | Rider Height |
26" ONE SIZE | 125cm to 167.5cm |
Allows 24" wheels & 110mm cranks | 122.5cm to 142.5cm |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Size Guide
Size Guide

How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
