TREK CHECKPOINT + SL 6 AXS GRAVEL eBIKE 2026 FJORD BLUE/COBALT BLUE

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

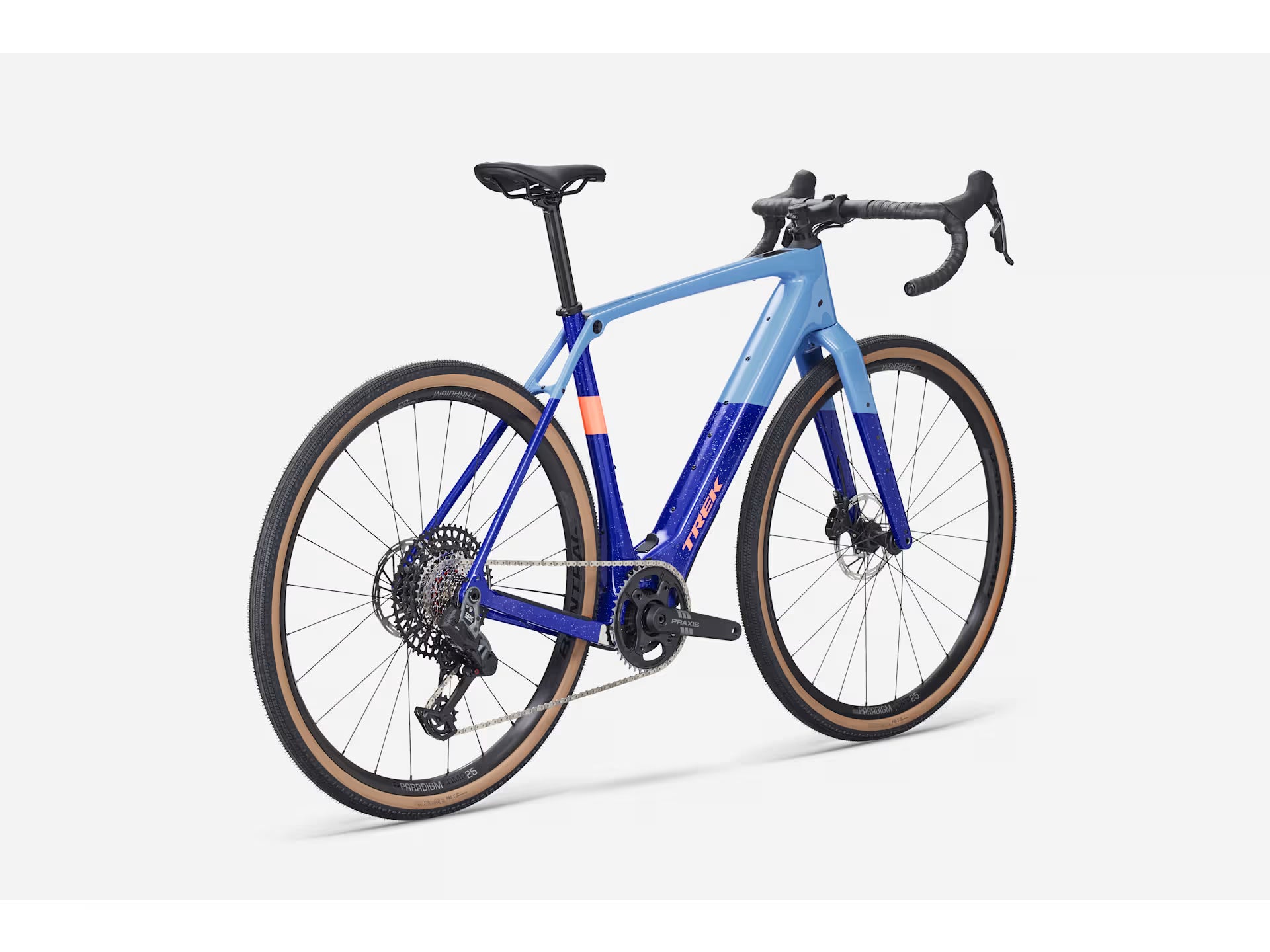

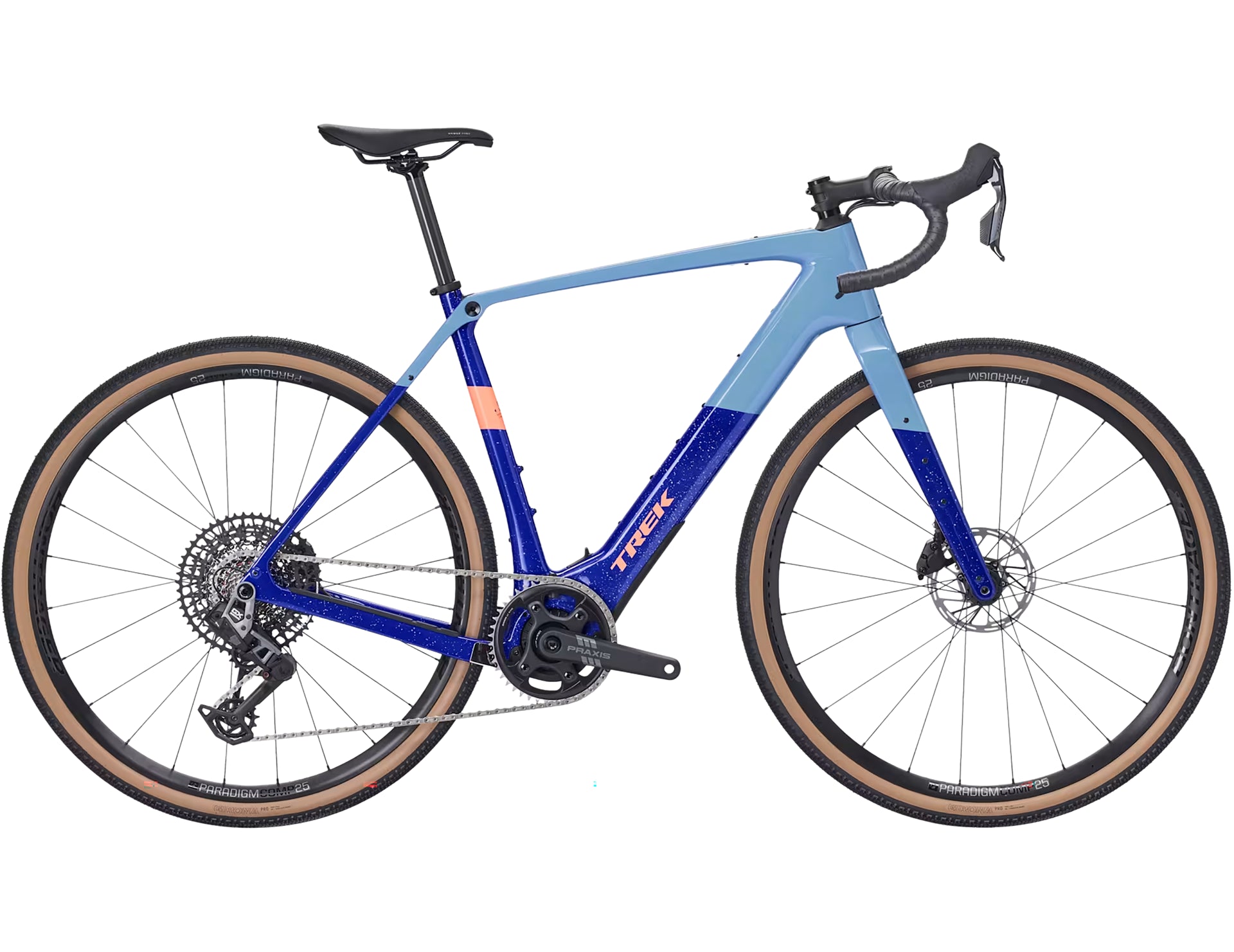

The Checkpoint+ SL 6 AXS is a carbon electric gravel bike for extending your adventures.

It's ready to explore anywhere, with a smooth-and-quiet TQ HPR 60 motor, SRAM GX AXS wireless 12-speed drivetrain, clearance for 50 mm tyres and loads of mounts for gear.

Key Features

• Range extender compatible: You can add on a Range Extender that fits neatly in the bottle cage

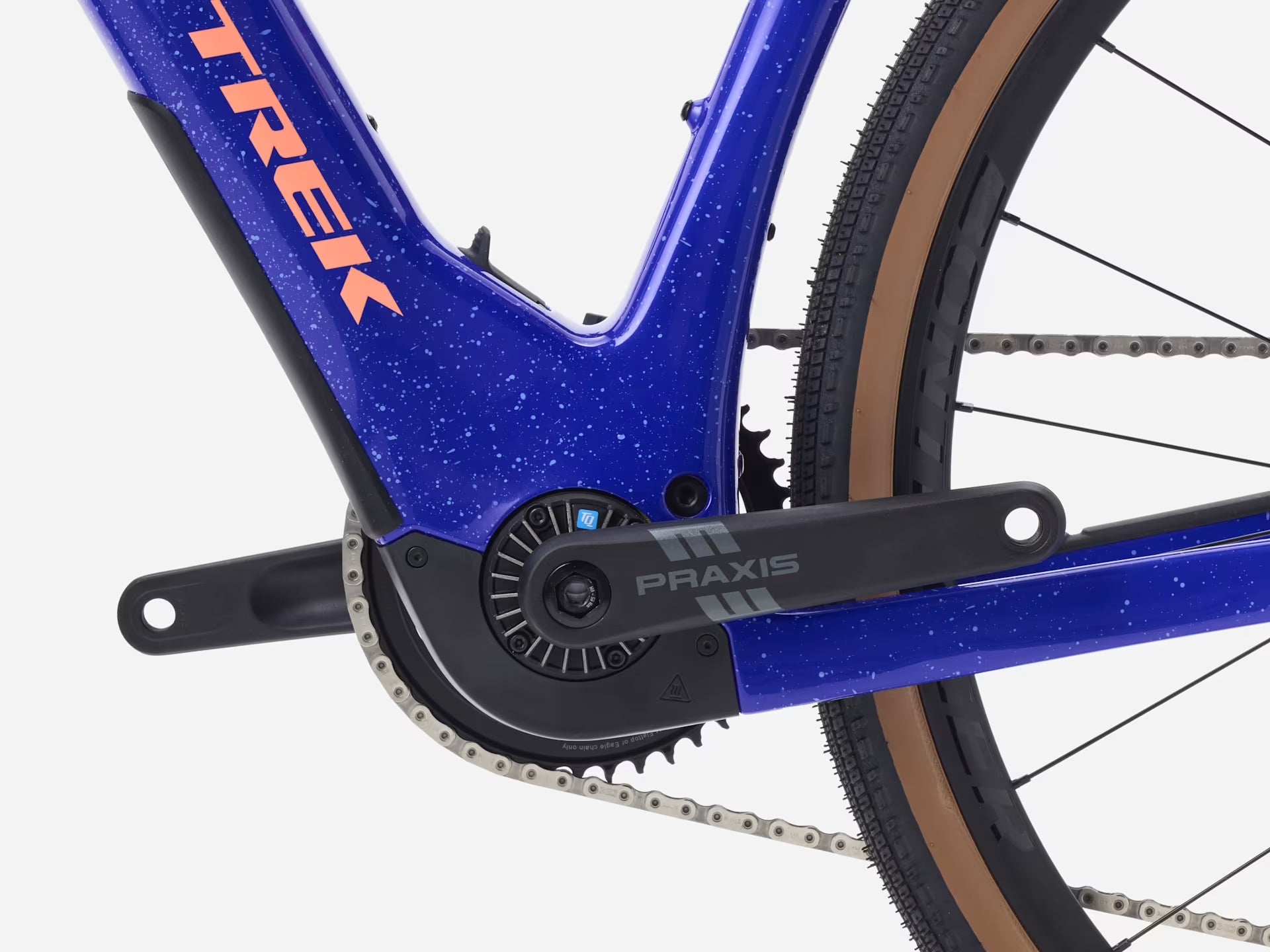

• TQ harmonic pin ring motor Motor: Discreet, compact, light and whisper-quiet, and offers a powerful assist up to 15.5 mph
• Adventure-ready SRAM drivetrain: GX AXS wireless electronic drivetrain provides precise shifting


Specification

• Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

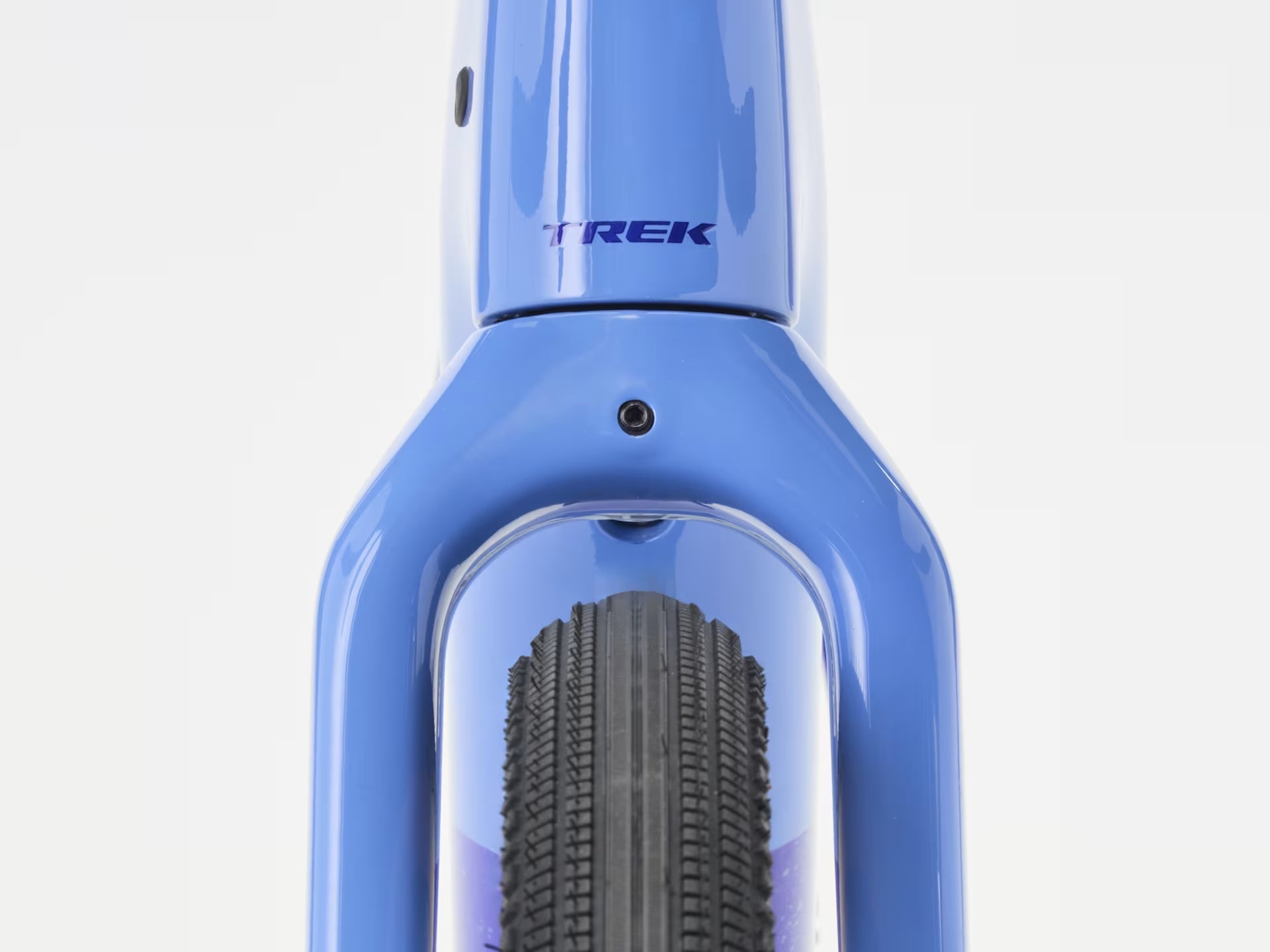

• Fork: Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
• Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
• Battery: TQ 360Wh

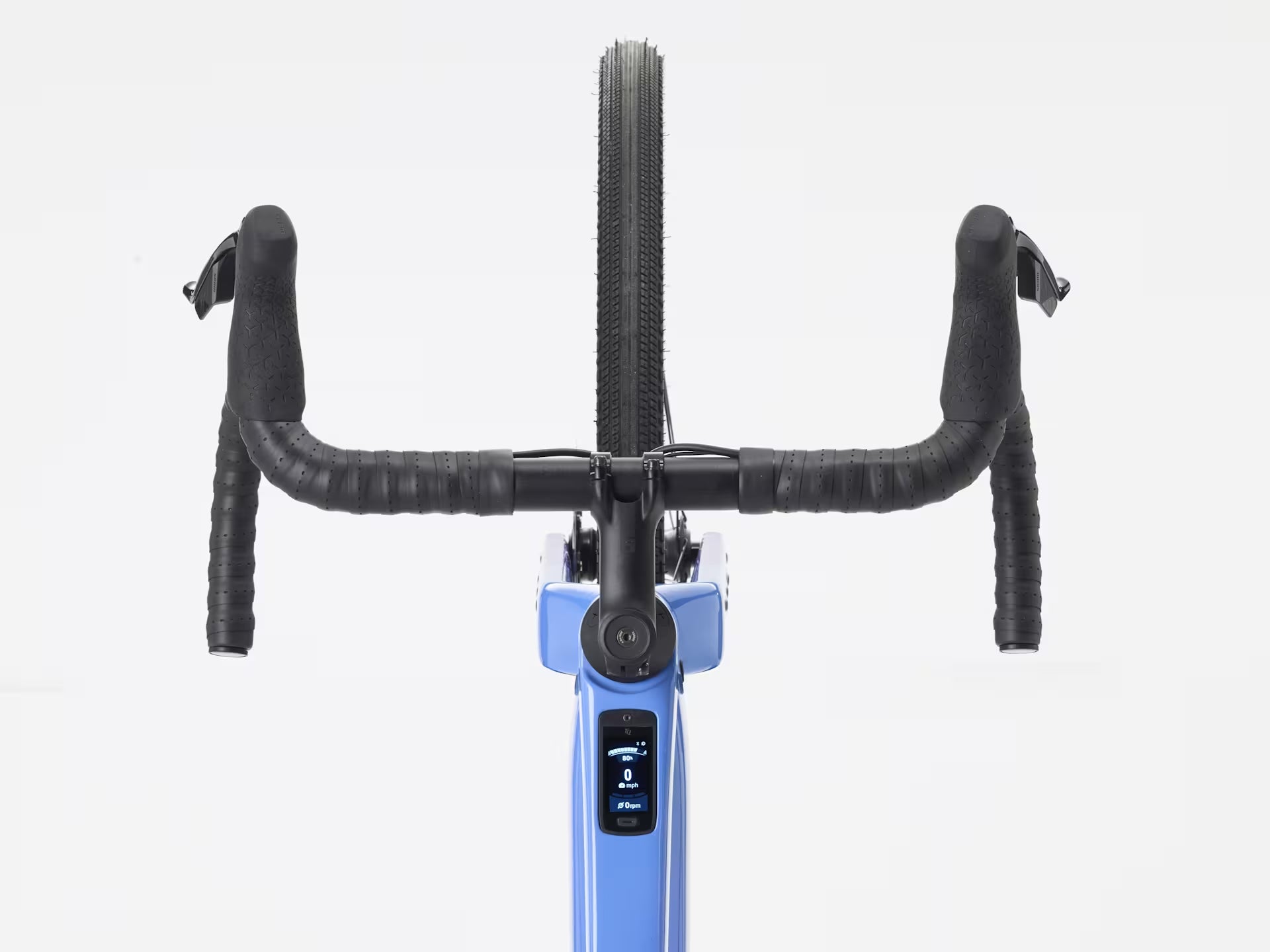

• Controller: TQ LED display with Bluetooth & ANT+ connectivity
• Shifters: SRAM Rival AXS, 13-speed
• Crankset: Praxis Alloy, XS/S 165mm, M/ML 170mm, L/XL 172.5mm
• Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
• Chain: SRAM GX Eagle, T-Type, 12-speed
• Rear Derailleur: SRAM GX Eagle AXS, T-Type
• Pedals: Not supplied
• Rims: Bontrager Paradigm Comp 25
• Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
• Brakes: SRAM Paceline, rounded, CentreLock, 160 mm
• Handlebars: Bontrager Elite Gravel, Alloy. XS/S 40cm, M/ML 42cm, L 44cm, XL 46cm
• Bar Tape: Bontrager Supertack Perf tape
• Stem: Trek Pro, -7-degree, XS 70mm, S/M 80mm, ML/L 90mm, XL 100mm
• Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
• Saddle: Verse Short Comp 145mm, Steel Rails
• Accessories: TQ 4A charger, Max Tyre size 50c without mudguards, 42c with mudguards, Bontrager TLR sealant, 180 ml/6 oz
• Weight: ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)

• SKU: 57441

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
